KA TILT AND TURN
Our beautiful KA line is designed to give your project a minimalist look that highlights the exterior view rather than the system frames. Even with such minimal frames, they meet all hurricane safety standards.
General Specifications
• Inward opening / till turn window and balcony door
• Thermally broken
• Multi point lock system
• Internal hidden frame option
• Hidden Sash
• Hidden Hinges
• Bicolor Option
Size and performance
LMI Design
• Design load: 70 PSF
• Max Dimensions: 40" Width x 108" Height
SMI Design
• Design load 110 PSF
• Max Dimensions: 40" Width x 90" Height
LMI / SMI
• Design load 100.25 PSF
• Max Dimensions: 59" Width x 99" Height
• Air infiltration: 6.27 PSF
• Water infiltration: 16.5 PSF
Thermal Performance Simulation
Type: Single Sash
Width: 38”
Height: 130”
Glass: ¼" Solarban 70 Clear + ½" Air Spacer + ¼" Clear
• U Factor:
1.84 W/m²K
0.325 BTU / (h*ft²*ºF)
FULL FRAME INSIDE VIEW
HIDDEN FRAME INSIDE VIEW
Glass Options:
Our glass is certified by SGCC and IGCC, ensuring that our processes always deliver the highest quality.
Certificates
SGCC Certificate
IGCC Certificate
NFRC Certificate
TYPES
Single Sash

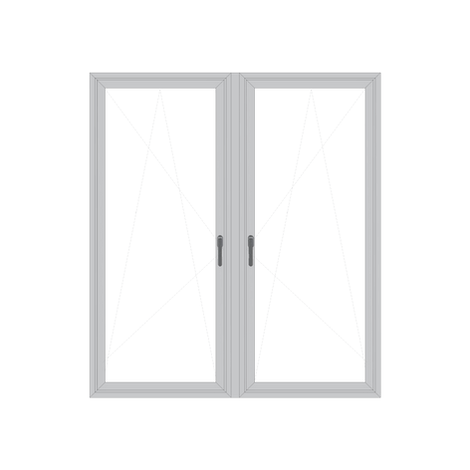

Double Sash

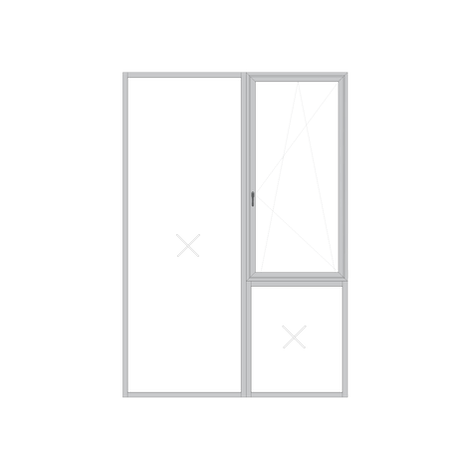

Single Sash+ Fixed
Single Sash+ Fixed
Colors
