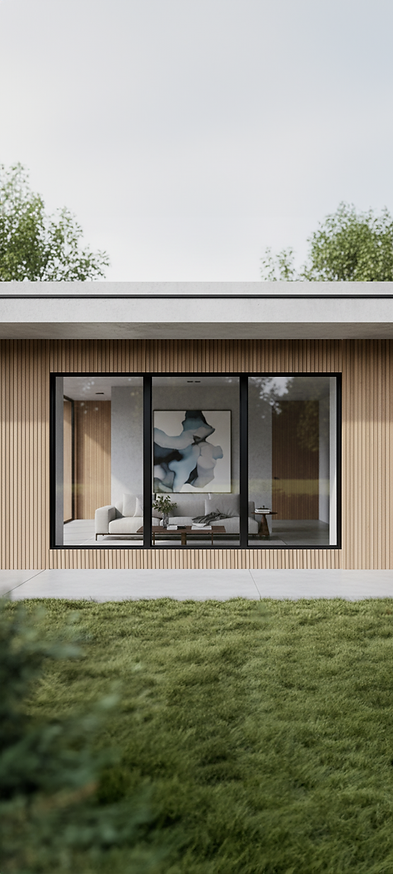

KA WINDOW WALL
Our beautiful KA line is designed to give your project a minimalist look that highlights the exterior view rather than the system frames. Even with such minimal frames, they meet all hurricane safety standards.
General Specifications
• Fixed Window Wall
• Works as an integral system with all KA products
• Thermally broken
• Hurricane resistant LMI/SMI
• Head receptor option
• Transom Option
• Male / Female mullion option
• Bicolor option
Size and performance
LMI Design
• Design load: 70 PSF
• Max Dimensions: 60" Width x 144" Height
SMI Design
• Design load 110 PSF
• Max Dimensions: 60" Width x 108" Height
Non Impact
• Design load 100,25 PSF
• Max Dimensions: 60" Width x 130" Height
• Air infiltration: 6.27 PSF
• Water infiltration: 16.5 PSF
Thermal Performance Simulation
Type: Single Panel
Width: 55”
Height: 130”
Glass: ¼" Solarban 70 Clear + ½" Air Spacer
+ ¼" Clear
• U Factor:
1.82 W/m²K
0.321 BTU / (h*ft²*ºF)
Glass Options:
Our glass is certified by SGCC and IGCC, ensuring that our processes always deliver the highest quality.
Certificates
SGCC Certificate
IGCC Certificate
TYPES
Single Fixed Panel
Number Of Fixed Panels (#N)

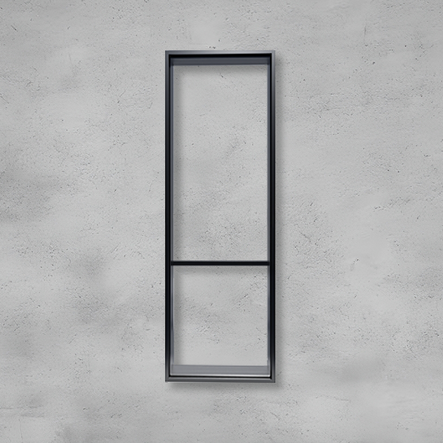

Number Of Fixed Panels with Transom (#N)
Colors
