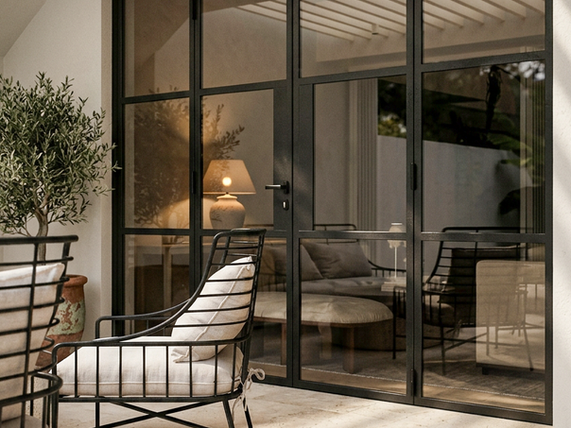

VINTAGE COLONIAL
FRENCH DOOR
Our beautiful VINTAGE line was created to give
your projects a luxurious and contemporary
touch with very slim profiles.
An excellent option for a classic or minimalist
style.
General Specifications
• French Outswing and Fixed configurations available
• Narrow sightline
• Multi point lock hardware
• From 3 to 5 glass lites
• Designed load: +60/-60 PSF (LMI)
Dimensions
• Frame depth: 4” or 6”
• Maximum sizes:
• Single door/Fixed: 50.5” Width x 130” Height
• Double door: 101” Width x 130” Height
LMI:
• Design load: 60 PSF
• Glass:
- ¼” HS + 0.09 PVB + ¼” HS
Non Impact:
• Design load: 60 PSF
• Glass:
- ¼” T + ½” spacer + ¼” T
• Air infiltration: 1.57 PSF
• Water infiltration: 9 PSF
FRAME OPTION
Vertical section
Option A
Only available for Types:
A - B
Vertical section
Option B
Available for all Types
Types

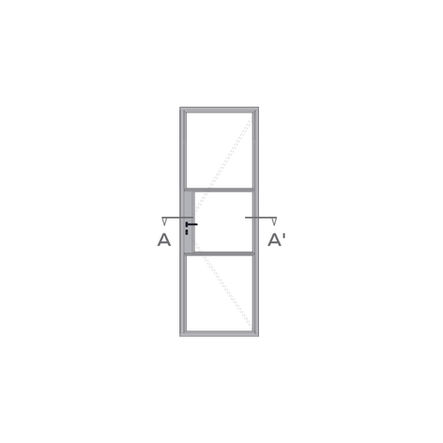

A. Single door

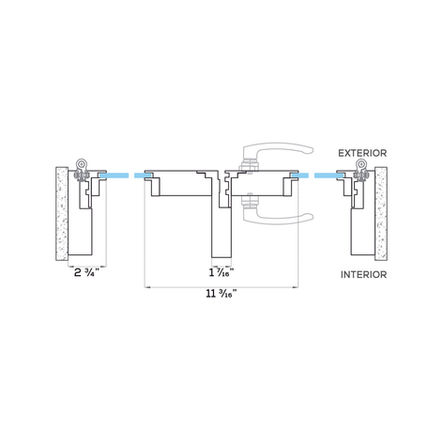

Horizontal section Option A
Horizontal section Option B
B. Double Door
Horizontal section Option A
C. Double Door + Fixed
Horizontal section Option B

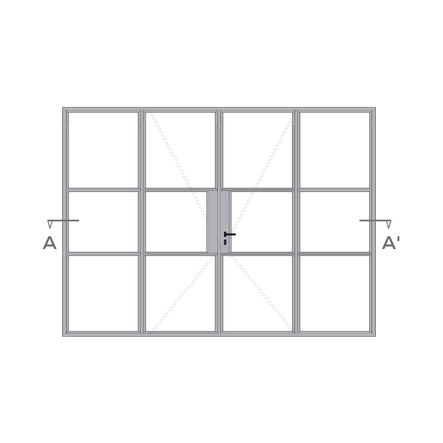

D. Double Door + Fixed
Horizontal section Option B
