HORIZONTAL ROLLER

Our window was created with ultra-slim profiles to deliver a luxurious and minimalist aesthetic. It is the perfect choice for contemporary architecture, elegantly framing the landscape and allowing light to define every space exceptionally.

General Specifications

• Sliding glass window

• Sill Riser Option

• LMI Design

• SMI Design

Size and performance

LMI Design

• Design load: 75 PSF

• Water Infiltration: 11.25 PSF

• Max Panel Dimensions:

2 panel 74" Width x 74" Height

3 panel 111" Width x 74" Height

SMI Design

• Design load 110 PSF

• Water Infiltration: 14.25 PSF

• Max Panel Dimensions:

2 panel 74" Width x 63" Height

3 panel 111" Width x 63" Height

• Air infiltration: 6.27 PSF

• Water infiltration Sill Cover: 9.75 PSF

• Water infiltration Sill Riser: 13.5 PSF


Frame Options

Vertical section
Sill Cover

10 (3).png

Vertical section

Sill Riser

10 (6).png

Glass Options:

Our glass is certified by SGCC and IGCC, ensuring that our processes always deliver the highest quality.


Certificates

SGCC Certificate

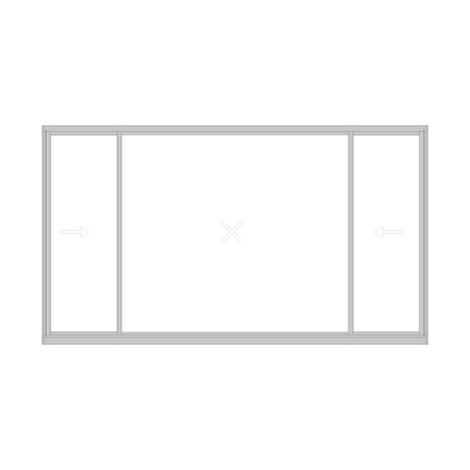

TYPES

2 Panel
3 Panel

Colors
