KA WW
FIXED / WINDOW WALL
Our beautiful KA line is designed to give your
project a minimalist look that highlights the
exterior view rather than the system frames. Even with such minimal frames, they meet all hurricane safety standards.
General Specifications
• Fixed Window Wall
• Works as an integral system with all KA products
• Thermally broken
• Hurricane resistant LMI/SMI
• Head receptor option
• Transom Option
• Male / Female mullion option
• Bicolor option
LMI Design
• Design load: 65 PSF
• Max Dimensions:
- 55" Width x 130" Height - SGP
- 40" Width x 108" Height - PVB
• Glass:
- ¼" HS + 0.09 SGP/PVB + ¼ HS
- ¼" T + ½" SPACER + ¼" HS + 0.09 SGP/PVB + ¼ HS
SMI Design
• Design load 110 PSF
• Max Dimensions:
- 55" Width x 130" Height
• Glass:
- ¼" T + 0.060 PVB + ¼" T
- ¼" T + ½" SPACER + ¼" T + 0.060 PVB + ¼" T
Non Impact
• Design load 110 PSF
• Max Dimensions:
- 55" Width x 130" Height
• Glass:
- ¼" HS + ½" SPACER + ¼" HS
• Air infiltration: 6.27 PSF
• Water infiltration: 16.5 PSF
Thermal Performance Simulation
Type: Single Panel
Width: 55”
Height: 130”
Glass: ¼" Solarban 70 Clear + ½" Air Spacer
+ ¼" Clear
• U Factor:
1.82 W/m²K
0.321 BTU / (h*ft²*ºF)
Our glass is certified by SGCC and IGCC, ensuring that our processes always deliver the highest quality
SGCC Certificate
IGCC Certificate
TYPES

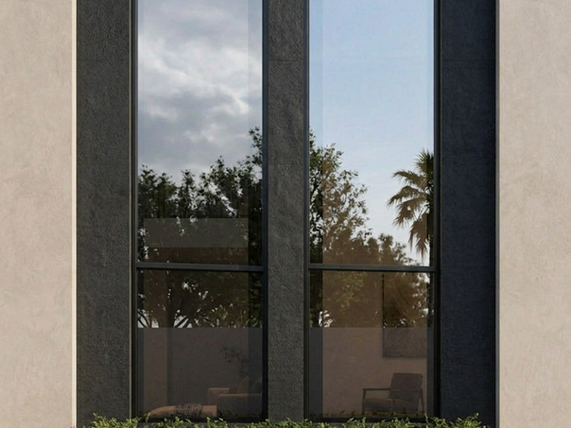

Single Fixed Panel

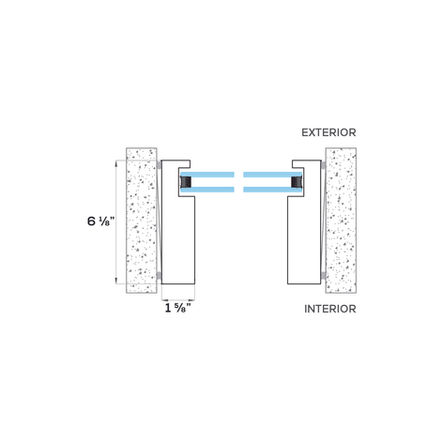

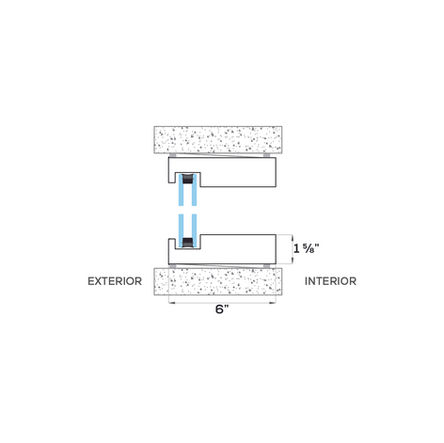

Vertical Section
Top section with head receptor
Vertical Horizontal

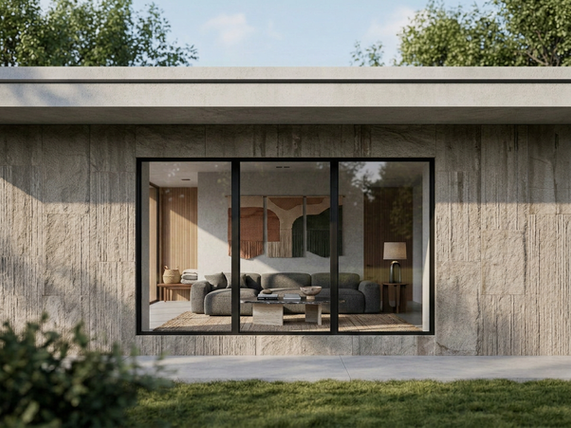

Number Of Fixed Panels (#N)

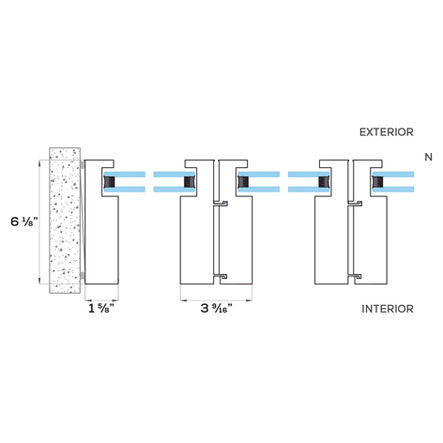

Vertical Section
Top section with head receptor
Vertical Horizontal

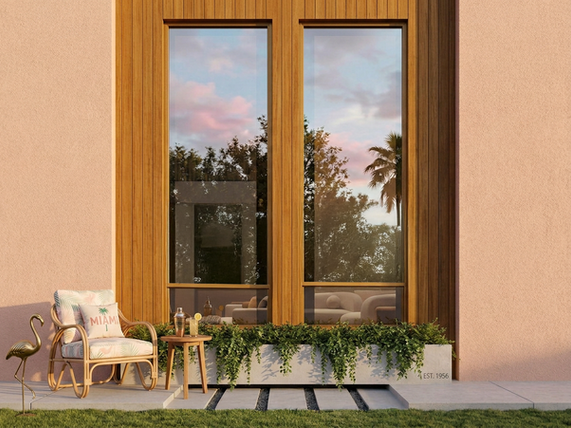

Number Of Fixed Panels with Transom (#N)

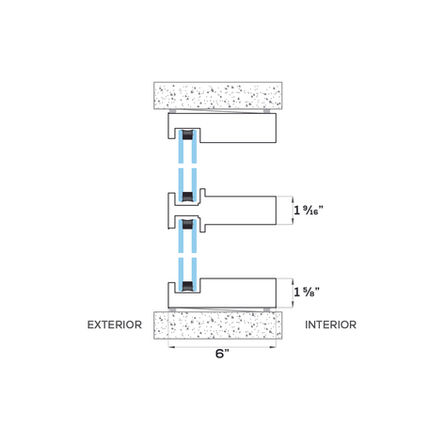

Vertical Section
Vertical Horizontal
Colors
