KA CASEMENT
Our beautiful KA line is designed to give your project a minimalist look that highlights the exterior view rather than the system frames. Even with such minimal frames, they meet all hurricane safety standards.
General Specifications
• Casement out Window / Balcony Door
• Works as an integral system with all KA
• products
• Thermally broken
• Hurricane resistant LMI/SMI
• Multi point lock sistem
• Hidden hinges
• Internal Hidden Frame option
• Bicolor option
Size and performance
LMI Design
• Design load: 70 PSF
• Max Dimensions: 40" Width x 108 Height
SMI Design
• Design load 110 PSF
• Max Dimensions: 50" Width x 76" Height
Non Impact
• Design load 100.25 PSF
• Max Dimensions: 50" Width x 76" Height
• Air infiltration: 6.27 PSF
• Water infiltration: 16.5 PSF
Thermal Performance Simulation
Type: Single Sash
Width: 38”
Height: 130”
Glass: ¼" Solarban 70 Clear + ½" Air Spacer + ¼" Clear
• U Factor:
1.98 W/m²K
0.348 BTU / (h*ft²*ºF)
FULL FRAME INSIDE VIEW

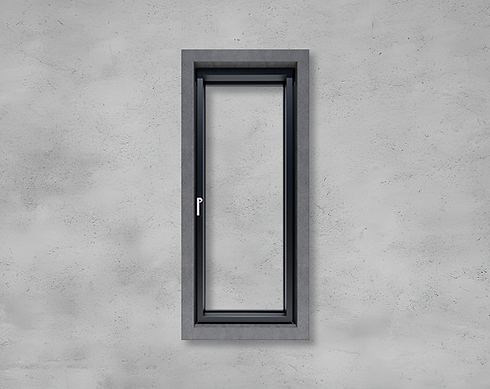

HIDDEN FRAME INSIDE VIEW
Glass Options:
Our glass is certified by SGCC and IGCC, ensuring that our processes always deliver the highest quality.
Certificates
SGCC Certificate
IGCC Certificate
NFRC Certificate
TYPES
Single Sash
Double Sash
Single Sash+ Fixed
Single Sash+ Fixed
Colors
