VINTAGE MINIMAL
FRENCH DOOR
Our beautiful VINTAGE line was created to give
your projects a luxurious and contemporary
touch with very slim profiles.
An excellent option for a classic or minimalist
style.
General Specifications
• French Outswing and Fixed configurations available
• Narrow sightline
• Multi point lock hardware
• Designed load: +60/-60 PSF (LMI)
Dimensions
• Frame depth: 4” or 6”
• Maximum sizes:
- Single door/Fixed: 50.5” Width x 130” Height
- Double door: 101” Width x 130” Height
LMI:
• Design load: 60 PSF
• Glass:
- ¼” HS + 0.09 SG + ¼” HS
Non Impact:
• Design load: 60 PSF
• Glass:
- ¼” T + ½” spacer + ¼” T
• Air infiltration: 1.57 PSF
• Water infiltration: 9 PSF
Our glass is certified by SGCC and IGCC, ensuring that our processes always deliver the highest quality
SGCC Certificate
IGCC Certificate
FRAME OPTIONS
Vertical section
Option A
Only available for Types:
A - B - C
Vertical section
Option B
Available for all Types
Types
A. Single Door

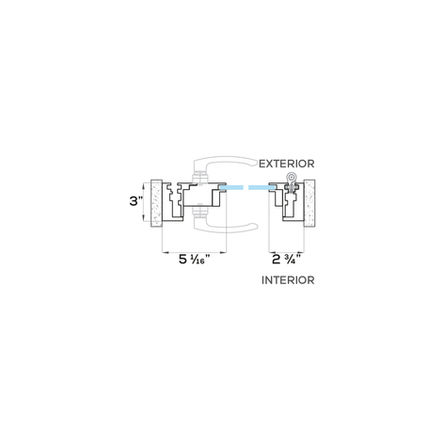

Horizontal section Option A
B. Double Door Standard
Horizontal section Option A
C. Double Door Minimal
Horizontal section Option B
D. Double Door Minimal + Fixed
Horizontal section Option B
E. Double Door Standard + Fixed
Horizontal section Option B
F. Double Door Minimal + Fixed
Horizontal section Option B
G. Double Door Standard + Fixed
Horizontal section Option B
Colors
