WINDOW

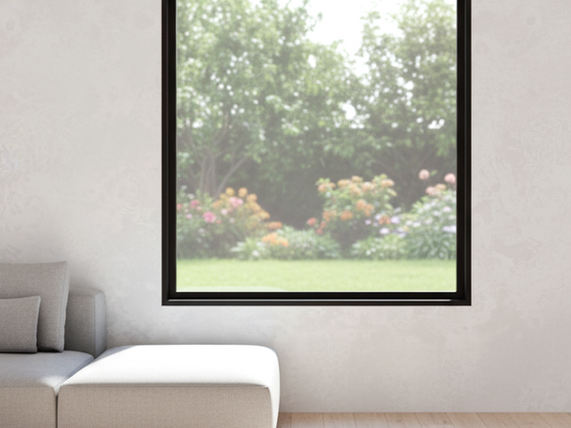

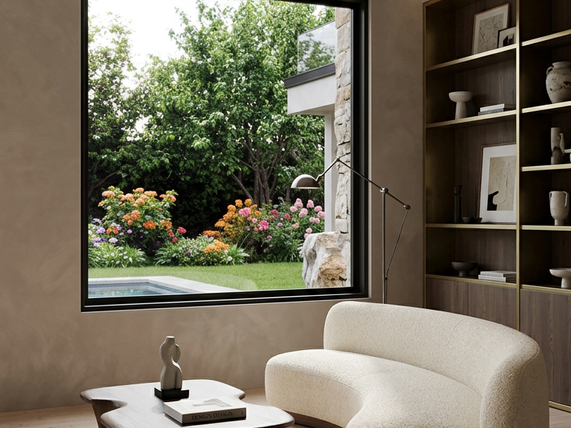

PICTURE WIN (1).png

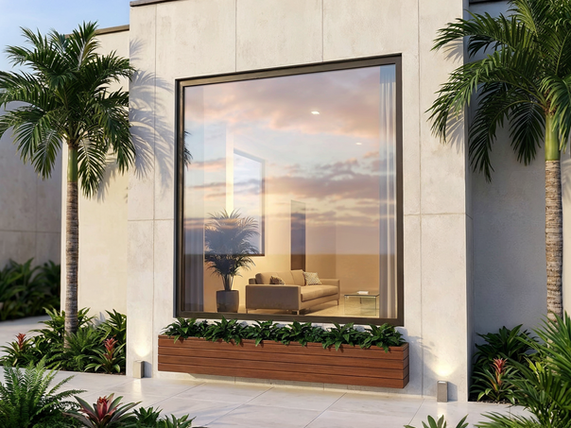

Frame your landscape exceptionally with our Picture Window, designed with ultra-slim profiles for a luxurious, minimalist aesthetic. This fixed glass system maximizes natural light and unobstructed views while delivering complete hurricane and impact resistance.

General Specifications

  • Fixed glass window

  • Ultra-slim frame design

  • Arched option

Dimensions and Performance

LMI Design - Max Panel Dimensions:

  • 42" Width x 144" Height at 80 PSF

  • 60" Width x 108" Height at 74.8 PSF

SMI Design - Max Panel Dimensions:

  • 36" Width x 144" Height at 120 PSF

  • 48" Width x 108" Height at 120 PSF

​

** Size chart available in Florida Approval

• Air infiltration: 6.24 PSF

• Water infiltration: 18 PSF

Glass Options:

Our glass is certified by SGCC and IGCC, ensuring that our processes always deliver the highest quality.

Laminated
11 (1) (1).png

Certificates

SGCC Certificate

FBC Certificate

TYPES

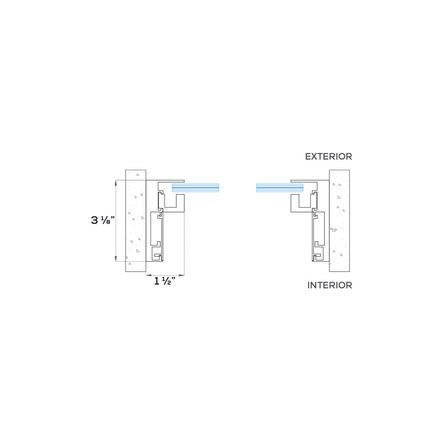

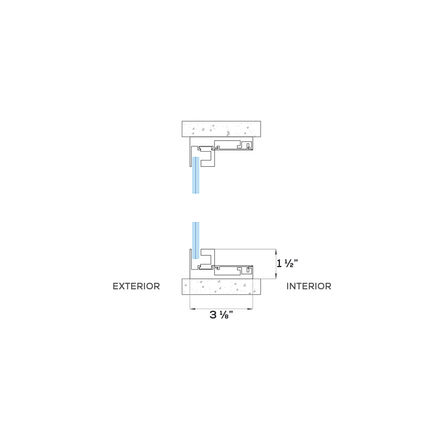

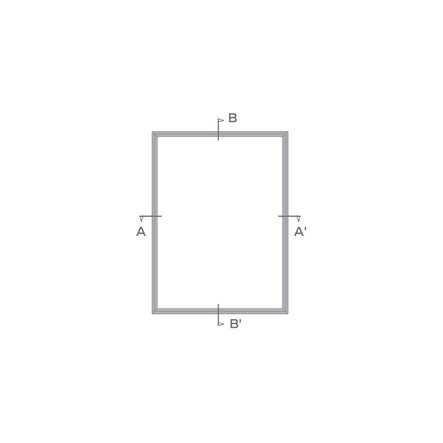

Single Fixed Panel

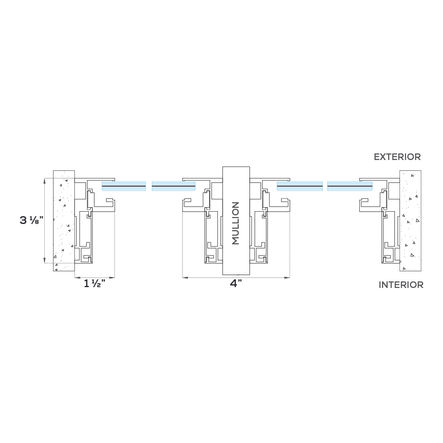

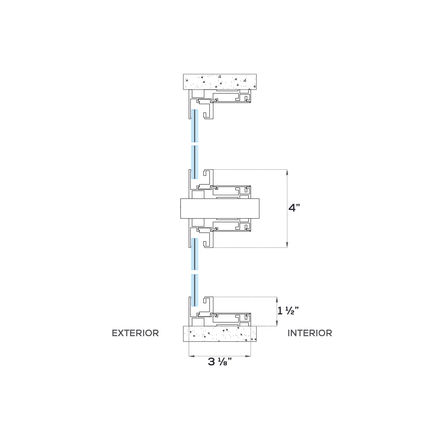

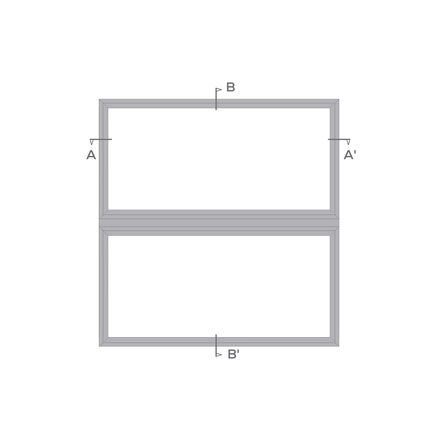

"N" Number Of Fixed Panels
"N" Number Of Fixed Panels

Colors
