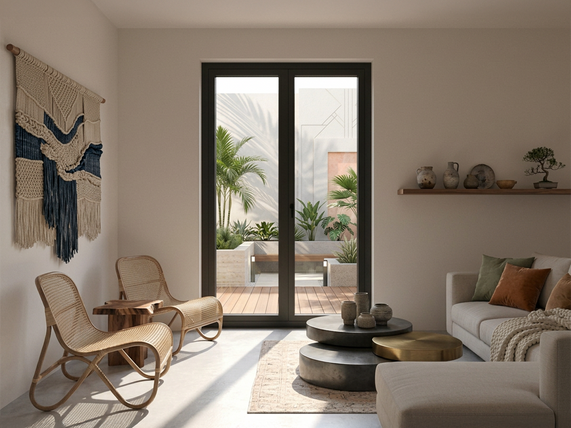

KA 4016 DOOR

FRENCH DOOR

Our beautiful KA line is designed to give your
project a minimalist look that highlights the
exterior view rather than the system
frames. Even with such minimal frames, they
meet all hurricane safety standards.

Specifications

• French / Swinging door
• Works as an integral system with all KA products
• Single and Double door option
• Thermally broken
• Hurricane resistant LMI/SMI
• Multi point lock system
• Bicolor option

Vertical Section

TOP

BOTTOM

LMI Design

• Design load: 65 PSF
• Max Dimensions Single Door:
- 46" Width x 130" Height - SGP
- 46" Width x96" Height - PVB
• Max Dimensions Double Door:
- 92" Width x 130" Height - SGP
- 92" Width x 96" Height - PVB
• Glass:
- ¼" HS + 0.09 SGP/PVB + ¼" HS
- ¼" T+ ½" SPACER + ¼" HS + 0.09 SGP/PVB + ¼" HS

SMI Design

• Design load 110 PSF
• Max Dimensions Single Door:
- 46" Width x 108" Height
• Max Dimensions Double Door:
- 92" Width x 108" Height
• Glass:
- ¼" T + 0.060 PVB + ¼" T
- ¼" T + ½" SPACER + ¼" T + 0.060 PVB + ¼" T

Non Impact

• Design load 110 PSF
• Water Infiltration: 15 PSF
• Max Dimensions Single Door:
- 46" Width x 130" Height
• Max Dimensions Double Door:
- 92" Width x 130" Height
• Glass:
- ¼" HS + ½" SPACER + ¼" HS

• Air infiltration: 6.27 PSF
• Water infiltration: 16.5 PSF
