DREAM CASEMENT OUT / AWNING
WITH CRANK OPERATOR

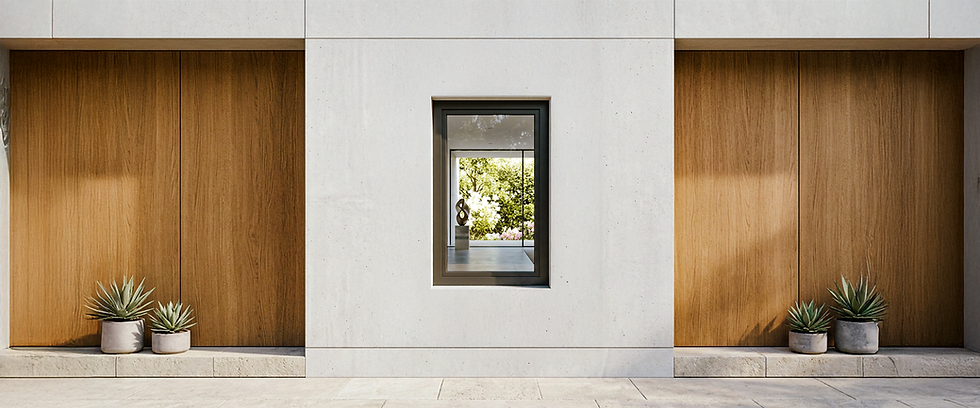

dream win.png

A true masterpiece of design, the Dream Casement and Awning system features a smooth crank operator for e ortless dual functionality. It maximizes ventilation and views, distinguishing every project with innovation and style.

General Specifications

  • Awning / Casement out

  • Multipoint lock hardware

  • Interior hidden sash

  • Crank Operator

  • 4-bar hinge or european hinge options

  • Optional removable interior fixed screen

Dimensions and Performance

LMI Design - Max Panel Dimensions:

  • 40" Width x 76" Height at 85 PSF

SMI Design - Max Panel Dimensions:

  • 40" Width x 76" Height at 120 PSF

  • Air infiltration: 6.24 PSF

  • Water infiltration: 18 PSF

Glass Options:

Our glass is certified by SGCC and IGCC, ensuring that our processes always deliver the highest quality.

Laminated
Insulated
ins lam.png
Insulated laminated

Certificates

SGCC Certificate

FBC Awning

IGCC Certificate

FBC Casement

Clip Options

TYPES

Casement Window
Projected Window

Colors
